Galvanized 25M 69kv Power Distribution Pole / Electrical Power Transmission

Name: Galvanized 25M 69kv Power Distribution Pole Electrical Power Transmission
Brand: JSHG
Price: 1 USD

Brand Name : JSHG

Model Number : HG-SP-110KV

Certification : ISO/CNAS/IAF/CA

Place of Origin : China

MOQ : One 40 HQ Container

Price : negotiation

Payment Terms : L/C, T/T or Western Union

Supply Ability : 3,000 Metric Tons per Month

Delivery Time : 2 weeks per container after PO / drawing / prepayment confirmed

Packaging Details : * Covered by Plastic Wrap or Mat or according to client's requests. * The Loading Pcs of Each Container could be calculated according to client's specification and data.

Application : Electrical Power transmission and distribution line

Once forming : 16m Once forming without joint

Material : Q235, Q345, Gr.50, Gr.65

Shape : Round / polygonal / Conical / Tubular / Tapered

Appearance Treatment : Hot-dip galvanized / Painting

Welding : According to AWS D 1.1, CO2 welding or submerged arc auto methods

Contact Now

25M Galvanized Power Transmission Pole For 69 kv Power Distribution Line

Galvanized 25M 69kv Power Distribution Pole / Electrical Power Transmission

Description:

NEA STANDARD FOR STEEL POLES
Height (ft)	25	30	35	40
Top Diameter (mm)	120	127	127	127
Butt Diameter (mm)	152	226	248	317
Thickness (mm)	2.5	3	3	3
Design Load (kg.)	300	500	500	500
Yield Stress (MPA)	345	345	345	345
Zinc Coating (microns)	86	86	86	86

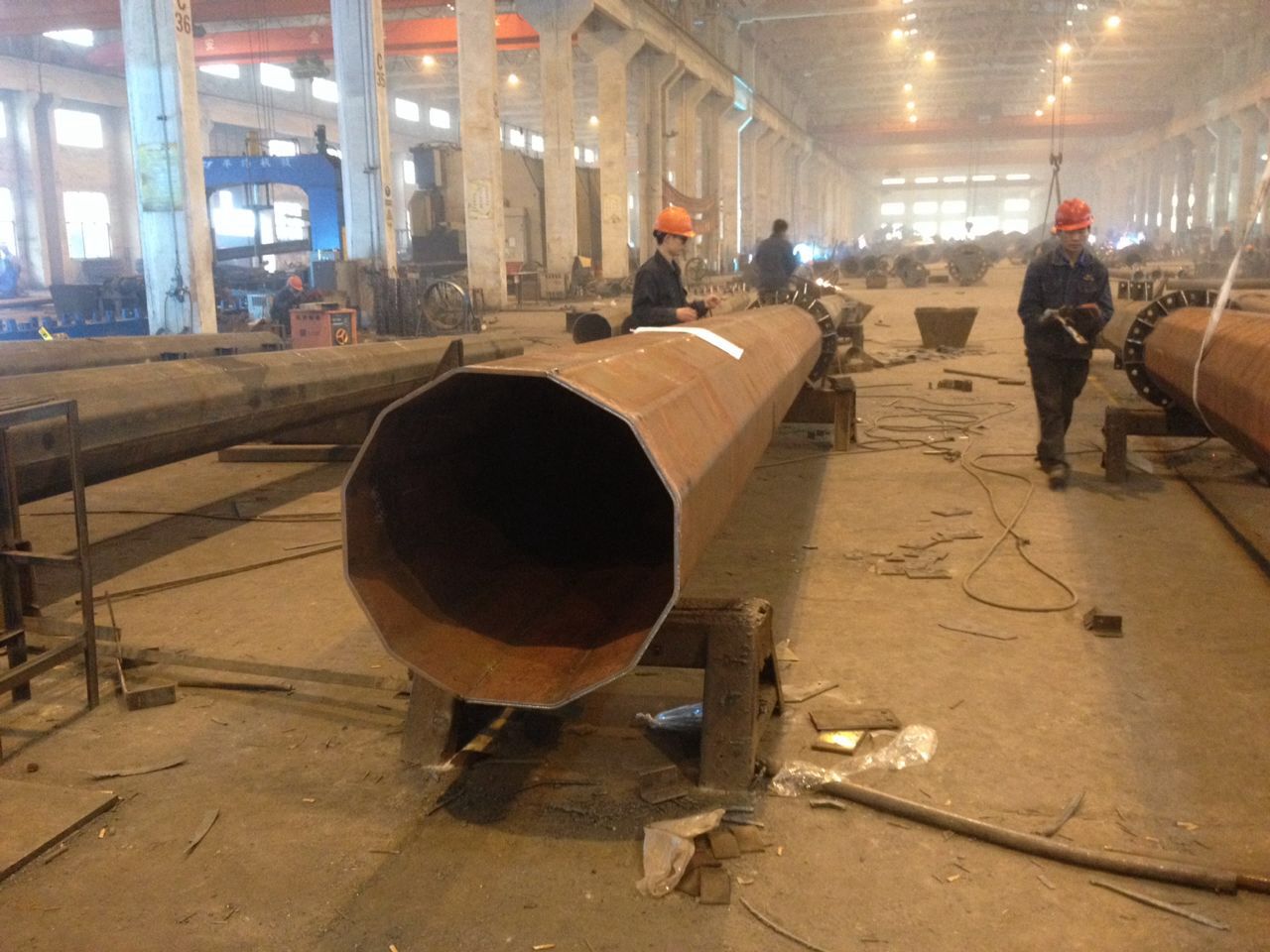

Our steel poles, being manufactured from steel sheet that has been subjected to hydraulic pression and longitudinal welding, has a tapered tubular structure with a multilateral cross section. To achieve a proper height, steel poles can be assembled by insert mode or flange mode at the installation site.

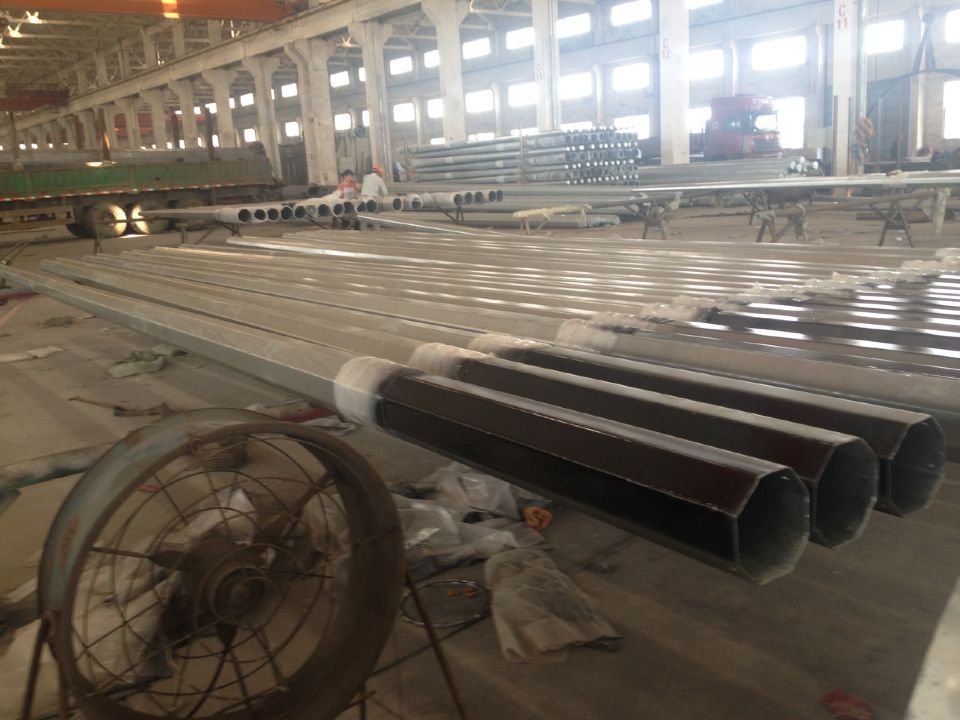

Product Detail :

Galvanized 25M 69kv Power Distribution Pole / Electrical Power Transmission

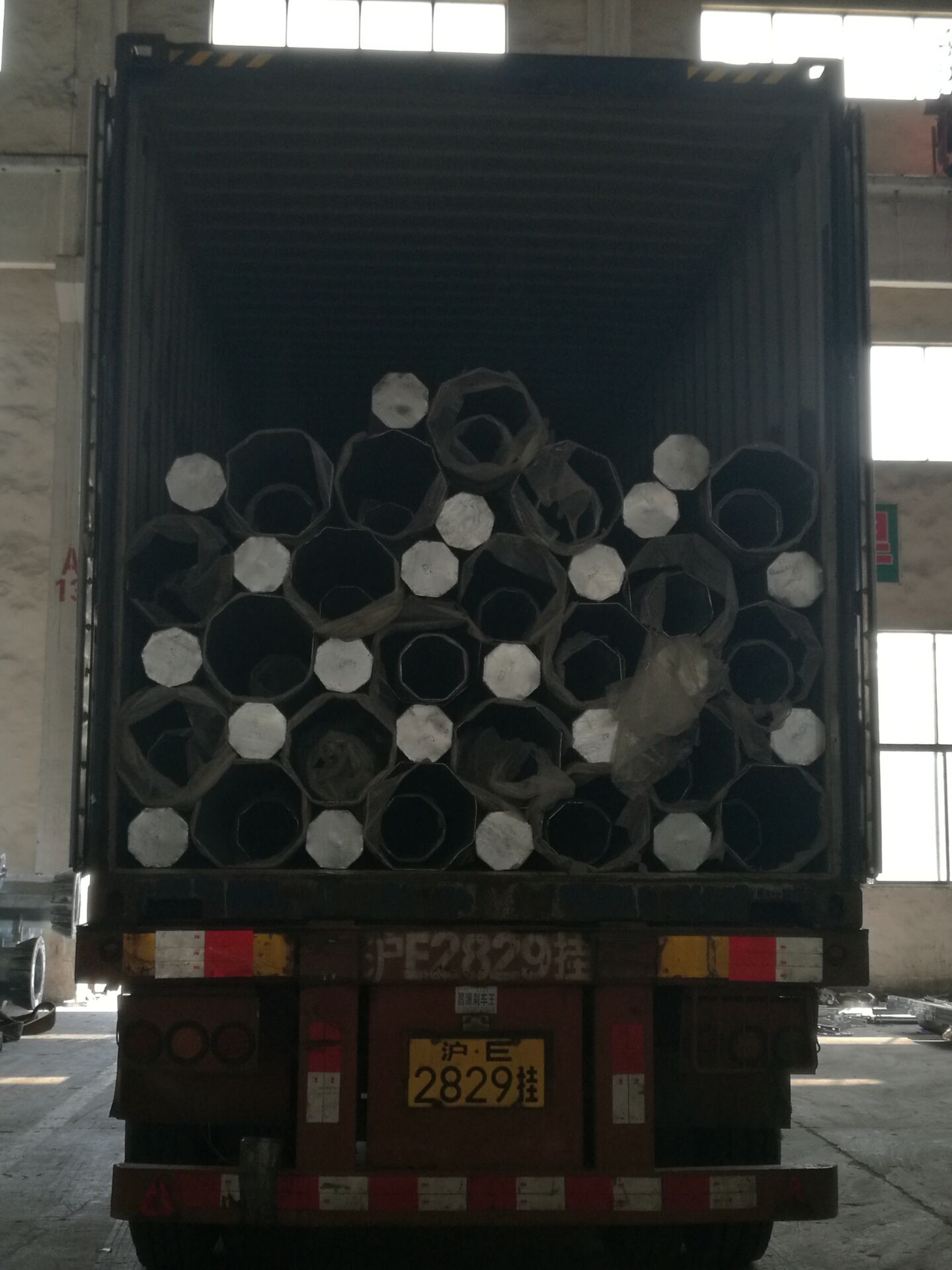

Packaging & Shipping:

Galvanized 25M 69kv Power Distribution Pole / Electrical Power Transmission

Our Customers:
